Designed to service the lower and main decks of cargo aircraft B767, 777, MD-11, DC-10, A320, 321, 330. Maximum load −7,000 kg. Maximum service height — 3,700 mm.
The loader is designed to service containers with dimensions of 60.4″ x 62.5″ and pallets of 125"x 96″.
The loader has two lifting platforms.
The main platform has the ability to move containers and pallets forward, backward and to turn by 360oin any direction.
The cargo platform has the ability to move containers and pallets forward, backward and left and right.
The powerplant allows to rotate all kinds of standard containers or pallets the dimensions of which do not exceed 96"x125″, in the rear of the platform.

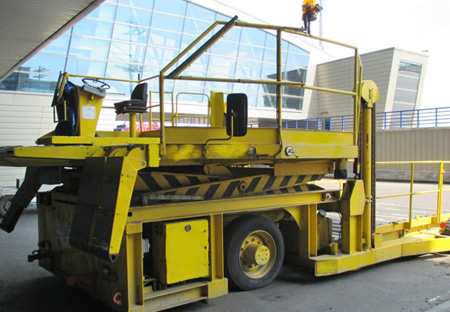

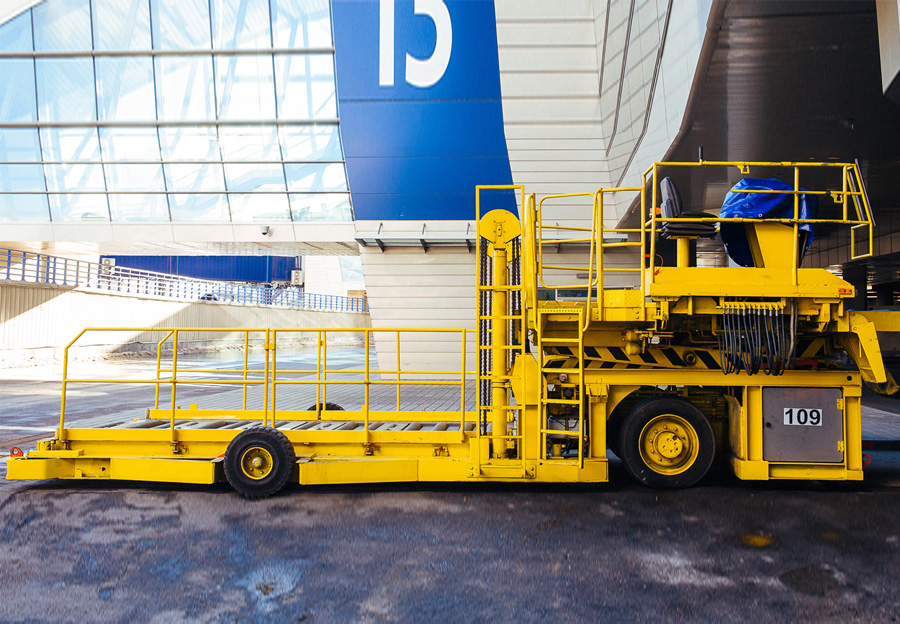

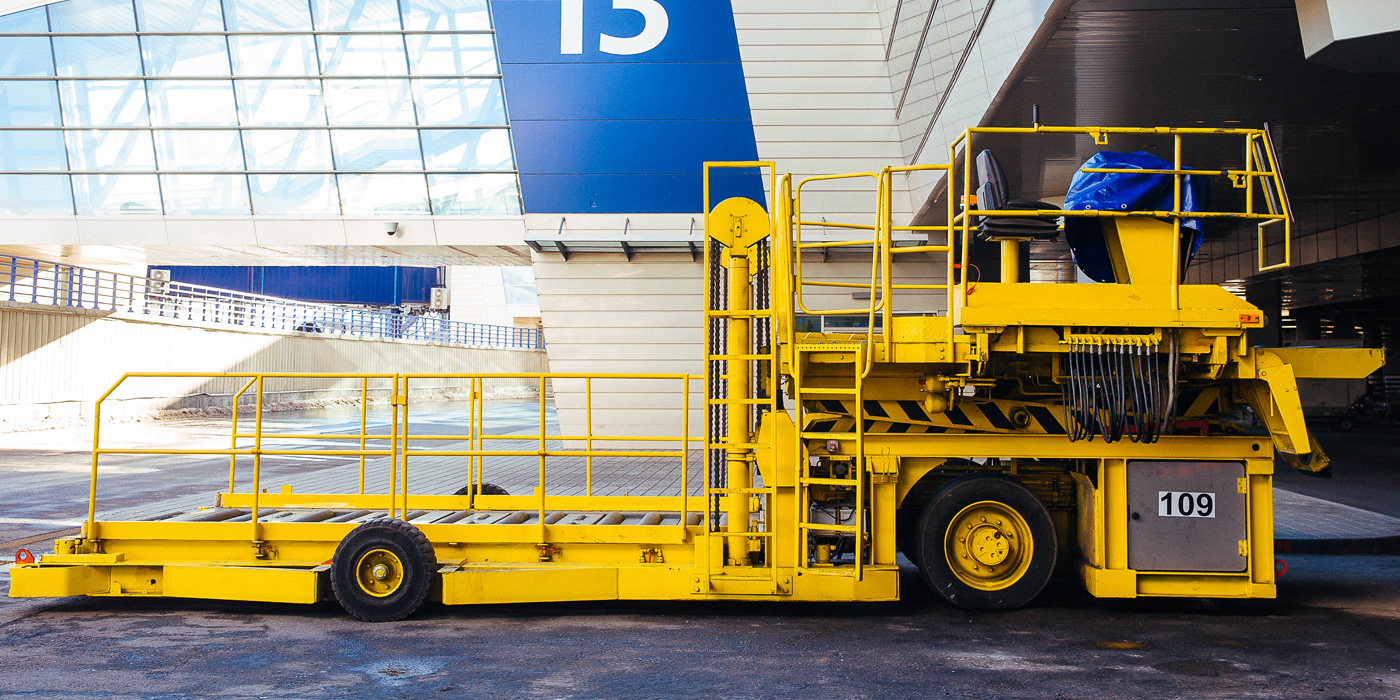

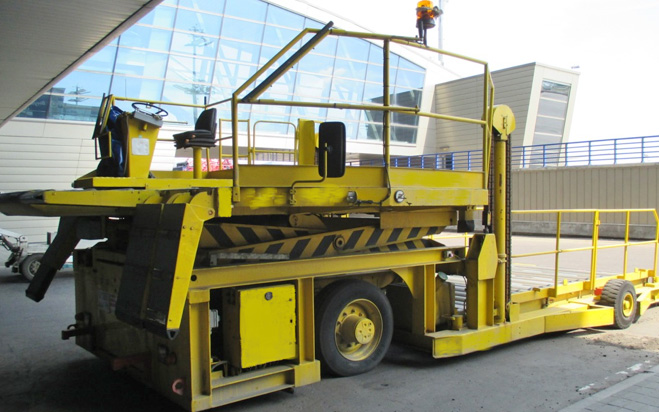

The TREPEL CCL 70 loader can be used to service the following types of aircraft:
Main deck: |
Lower deck |
|
DC 8 |
B 747 |
|
DC 9 |
B 767/777 |
|
B 737 |
DC10 MD11 |
|
CL 44 (Canada Air) |
TRI STAR 1011 |
|
Fokker 28 |
A 310 (in the nose and tail) |
|
BAE |
||
TU 154 |
А 320 |
|
TU-204 |
А 321 |
|
А330, А340 |
||
A 380 (in the nose and tail) |
||
TU-204 |
||
Technical specifications Dimensions and weight |
||
Length |
9,200 mm |
|
Width |
3,600 mm |
|
Height |
3,100 mm |
|
Own weight |
14,000 kg |
|
Working height range: |
||
Main platform |
485 mm — 3,700 mm |
|
Front platform |
1,800 mm — 3,700 mm |
|
Distance between the guides: |
||
Main platform |
3,264 mm |
|
Front platform |
3,264 mm |
|
Ground clearance |
120 mm |
|
Performance Payload on lift: |
||
Loader stairs |
7,000 kg |
|
Main platform |
7,000 kg |
|
Load capacity (main platform): |
1 container of pallets 96″ x 125″ |
|
(along / across) |
||
2 pcs. of cargo containers LD |
||
Loader speed: |
max 15 km/h |
|
3 km/h (slow speed) |
||
Slope to overcome: |
Min. 7% |
|
Permissible wind speed |
20 m/s |
|
Ability to service ground transport |
1,600 mm |
