Ramp buses


Ramp buses

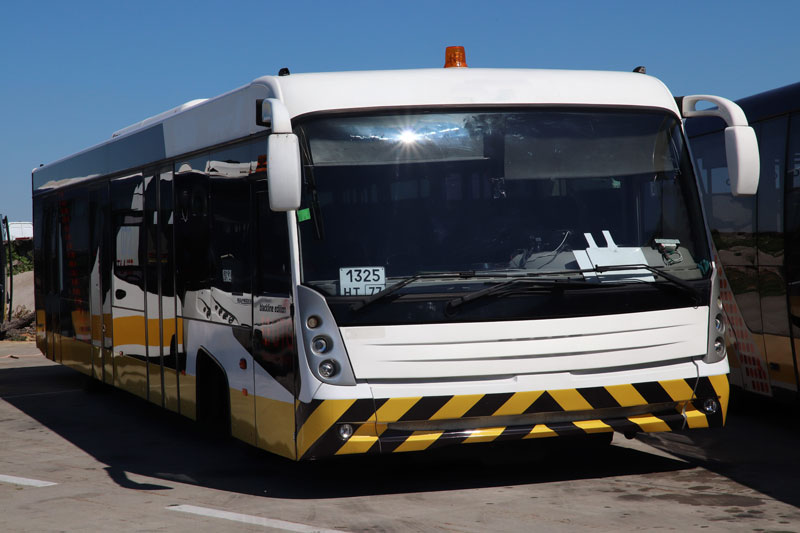

Ramp bus Cobus 3000 (Germany)

Dimensions, mm:

Length
Width
Height

13,780
2,980
2,856

Base, mm

7,100

Turning radius, m

13.5

Weight, kg:

In running condition
Full

9,400
20,400

Number of passenger seats:

For sitting
Total
Max

10-13
104-111
143

Cabin height, mm

2,477

Number of doors for passengers

6

Width of the entrance door opening, mm

1,260

Engine

Type
Number of cylinders
Working volume, cm3
Power, HP

OM-904LA
6
4,249
192

Number of gears

3

Wheel arrangement

4×2

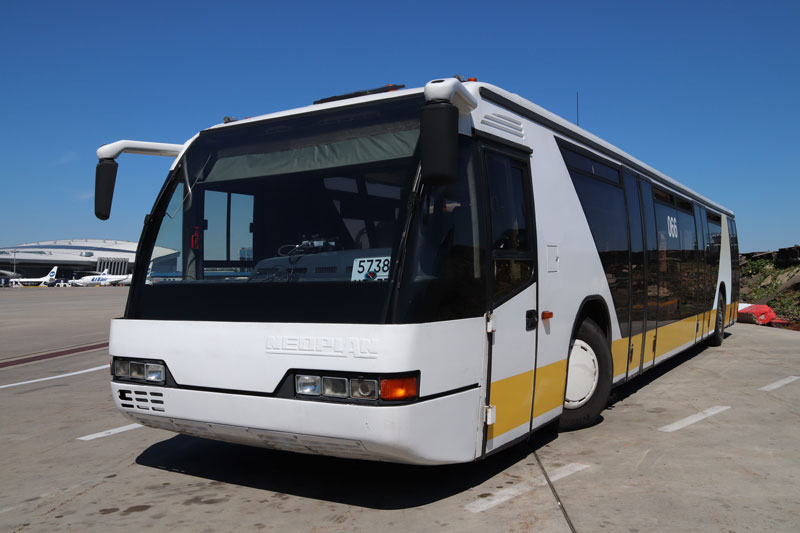

Ramp bus Neoplan 9022 (Germany)

Technical specifications

Model

9022

Dimensions, mm:

Length
Width
Height

12,920
3,160
2,738

Base, mm

6,800

Track, mm

2,126/2,530

Ground clearance, mm

280

Cabin height, mm

2,198

Height of the footboard, mm

280

Height of the floor level, mm

320

Floor area in cabin m2

21

Turning radius, m

13.7

Weight, kg:

In running condition
Full

10,500
20,000

Number of passenger seats:

For sitting
Total

8
84-126

Number of doors for passengers

6

Engine

Type
Number of cylinders
Working volume, cm3
Power, HP

OM-441
6
10,964
218

Number of gears

4

Wheel arrangement

4×2

Tyre size

385/65R22,5

Fuel capacity, l

200

Maximum speed, km / h

-

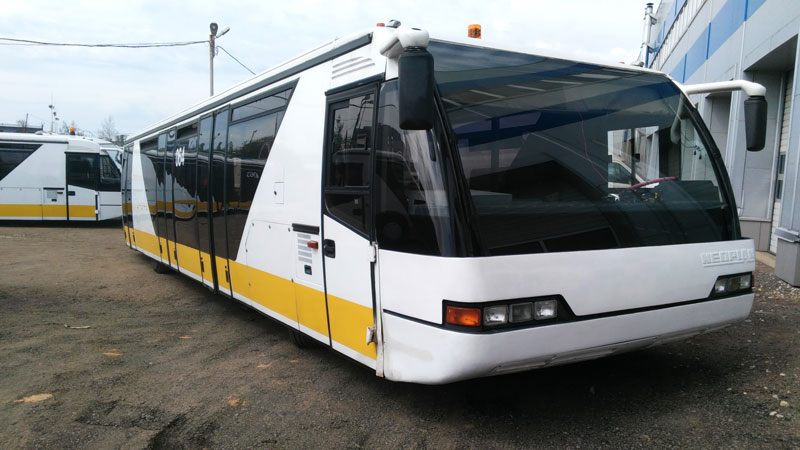

Ramp bus Neoplan 9012 L

Model

9012l

Dimensions, mm:

Length
Width
Height

14,330
2,650
2,760

Base, mm

8,210

Track, mm

2,100/2,530

Ground clearance, mm

280

Cabin height, mm

2,198

Height of the footboard, mm

280

Height of the floor level, mm

320

Floor area in cabin m2

22

Turning radius, m

13.7

Weight, kg:

Full


17,000

Number of passenger seats:

For sitting
Total

5-7
110-132

Number of doors for passengers

6

Engine

Type
Number of cylinders
Working volume, cm3
Power, HP

OM-441
6
10,964
218

Number of gears

4

Wheel arrangement

4×2

Tyre size

385/65R22,5

Fuel capacity, l

200
